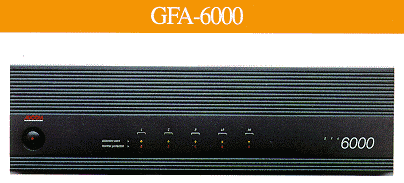

Adcom GFA-6000

GFA-6000

Creating the big, room-filling sound of a true home theater system doesn't mean you need an oversized amplifier. That's why Adcom's GFA-6000 5 Channel Power Amplifier was specially designed for the home theater customer who needs a compact yet powerful source for five speaker surround sound.

Powered by an enormous toroidal transformer with multiple secondary windings, the GFA-6000 is capable of driving 100 watts RMS into the three front channels and 60 watts into two rear channels. Power of this magnitude is usually only achieved by connecting multiple amplifiers. But with the GFA-6000 you get all that power in a compact package at an affordable price.

Listen to a home theater system built around a GFA-6000 and you'll hear a level of clarity, imaging and depth that can only be found in amps costing two and three times as much. Its uncompressed dynamics and distortion free sound field make the most of any size room. The GFA-6000 adapts the sound to fit your environment, so every entertainment event sounds as large and dynamic as the original performance.

And because it's an Adcom, the GFA-6000 is as easy to use and understand as it is pleasurable to hear. All RCA input connections are gold plated for the highest quality sound reproduction and all controls are ergonomically configured for easy operation.

Dollar for dollar there isn't another five channel, home theater amplifier that can deliver this level of power and performance. With Adcom components, great sounding home theater is in the details.

Adcom GFA-6000 Technical Specifications

Power Rating (To FTC Requirements)
3 Front Channels
·100 watts continuous average power into 8 ohms at any frequency between 20Hz and 20kHz with all channels driven at less than 0.09% THD.
·150 watts continuous average power into 4 ohms at any frequency between 20Hz and 20kHz with all channels driven at less than 0.09% THD.
2 Rear Channels
·60 watts continuous average power into 8 ohms at any frequency between 20Hz and 20kHz with all channels driven at less than 0.09% THD.
·100 watts continuous average power into 4 ohms at any frequency between 20Hz and 20kHz with all channels driven at less than 0.09% THD.

IM Distortion (SMPTE)
3 Front Channels
1 watt to 100 watts into 8 ohms.....<0.05%
1 watt to 150 watts into 4 ohms.....<0.05%
2 Rear Channels
1 watt to 60 watts into 8 ohms.....<0.05%
1 watt to 100 watts into 4 ohms.....<0.05%

IM Distortion (CCIF, Any Combination from 4kHz to 20kHz)
3 Front Channels
100 watts into 8 ohms.....<0.009%
150 watts into 4 ohms.....<0.009%
2 Rear Channels
60 watts into 8 ohms.....<0.009%
100 watts into 4 ohms.....<0.009%

Frequency Response at 1 Watt, all channels into 8 ohms
10Hz to 20kHz.....+0,-0.25dB

Power Bandwidth (-3dB).....3Hz to 100kHz

Dynamic Headroom into 4 Ohms (3 Front Channels) .....2.8dB

Dynamic Headroom into 4 Ohms (2 Rear Channels) .....1.8dB

Signal to Noise Ratio, "A" Weighted
3 Front Channels
100 watts into 8 ohms.....>105dB
2 Rear Channels
60 watts into 8 ohms.....>102dB

Gain (Level Controls at Maximum).....29dB

Damping Factor
20Hz to 20kHz (3 Front Channels).....>1000
20Hz to 20kHz (2 Rear Channels).....>380

Rise Time
5kHz, 80V peak to peak square wave, 20% to 80% (3 Front Channels).....2.2us
5kHz. 62V peak to peak square wave, 20% to 80% (2 Rear Channels).....2.3us

Power Consumption
Quiescent.....72VA
Maximum.....l440VA
All channels driven at rated power into 8 ohms.....840VA
All channels driven at rated power into 4 ohms.....1320VA

General

Power (available in 220V or 240V on special order)
120VAC/50-60Hz

Chassis Dimensions
5"(127mm) x 17"(432mm) x 13.5"(343mm)

Maximum Dimensions
5.5"(140mm) x 17"(432mm) x 14.25"(362mm)

Weight.....31.6 lbs.

Weight, packed.....38 lbs.

Specifications subject to change without notice.
