Welcome to "AXXAIR What's New" !

This page gives you the latest developments concerning the AXXAIR equipment and will be updated on a regular base in order to keep you informed.

For this new millenium we have worked hard to bring you many new and improved products. These are presented in more detail below - I'm sure that you'll find some pleasant surprises!

Range of orbital tube cutting machines

* Six standard machines

The AXXAIR range of CC machines is widening just for you. The standard range now includes no less than 6 machines.

CC60

 5 to 65 mm

CC80*

 5 to 78 mm

 CC120

 5 to 129 mm

 CC170

 16 to 170 mm

 CC220

 59 to 225 mm

 CC320

 140 to 330 mm

*The CC80 is as compact as the CC60 and can easily fit in its plastic case. The main advantage is that its clamping system is operated via a wheel instead of a lever which in turn means that the clamp is easier to operate.

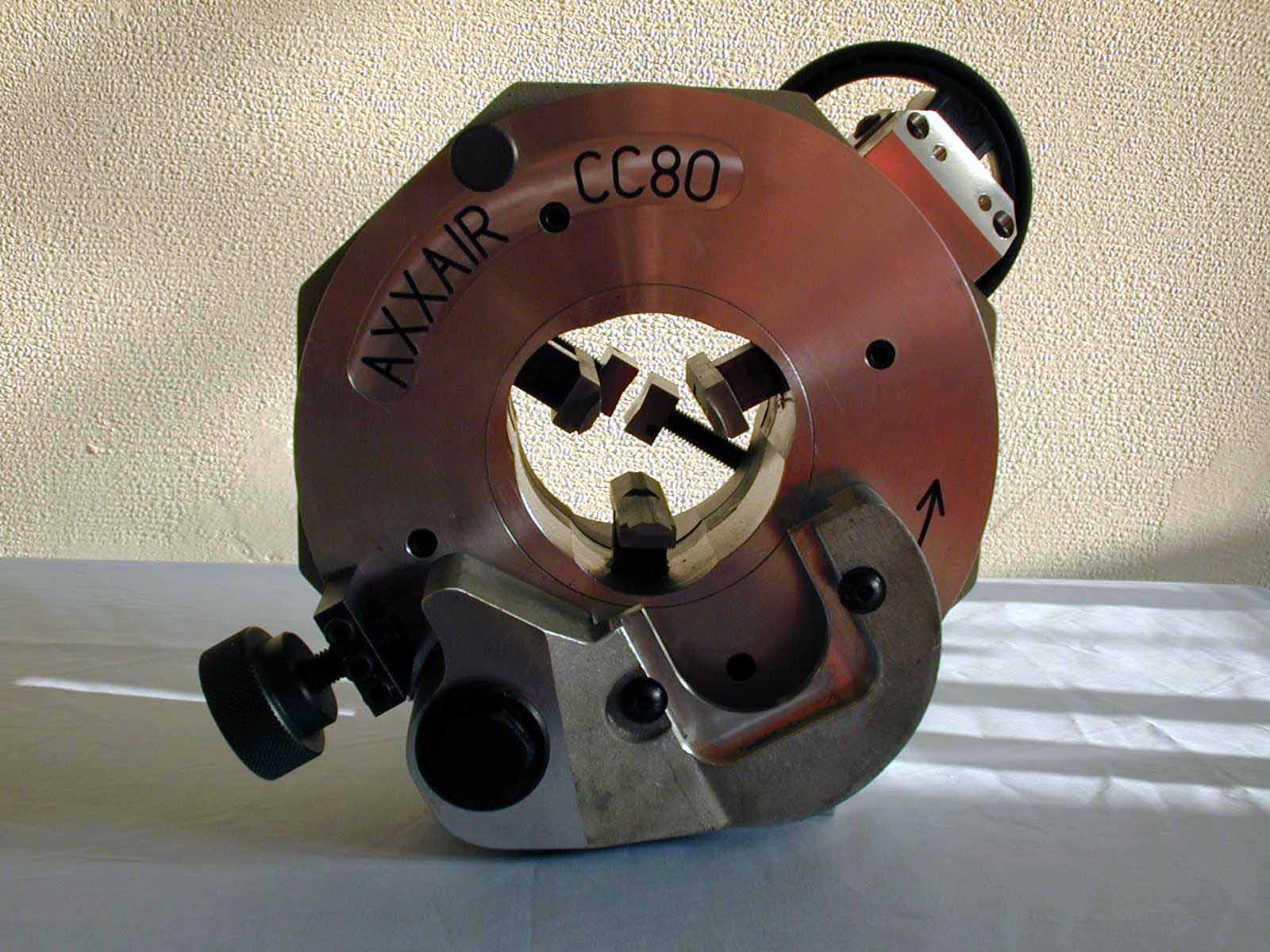

* The new CC80



* The CC420

As you already know, larger models are available on request for cutting up to 620 mm. Here is a photo of one of these such machines, the CC420:



New developments

* The METABO motor

This new form of motorisation offers a lot of advantages:

- The METABO is very robust and offers a wide range in speed: 10 to 250 RPM. It's practically 2 flex motors all in one! Suitable for cutting a whole range of materials; stainless steel, normal steel, aluminium and plastic.

- Its head allows you to adapt the blade in order to recuperate elbows welded on tubes

- The METABO network is large enough to ensure a competent and quick after sales service for all your emergencies.

-The rotating joint on the handle is even more efficient. The trigger is an integrated part of the handle.

- The METABO is available in 705 W and 1000 W on the CC60 and CC80. On the CC120, CC170 and CC220, only the 1000 W is available.

* AXXAIR saw blades

AXXAIR has introduced a new saw blade reference LS6844M (for 3 to 7 mm thickness) which is specially designed for cutting mild steel. This ensures a longer life time of the blade when cutting normal steel.

Very soon the AXXAIR range of saw blades will be completed in order to take into consideration these differences.

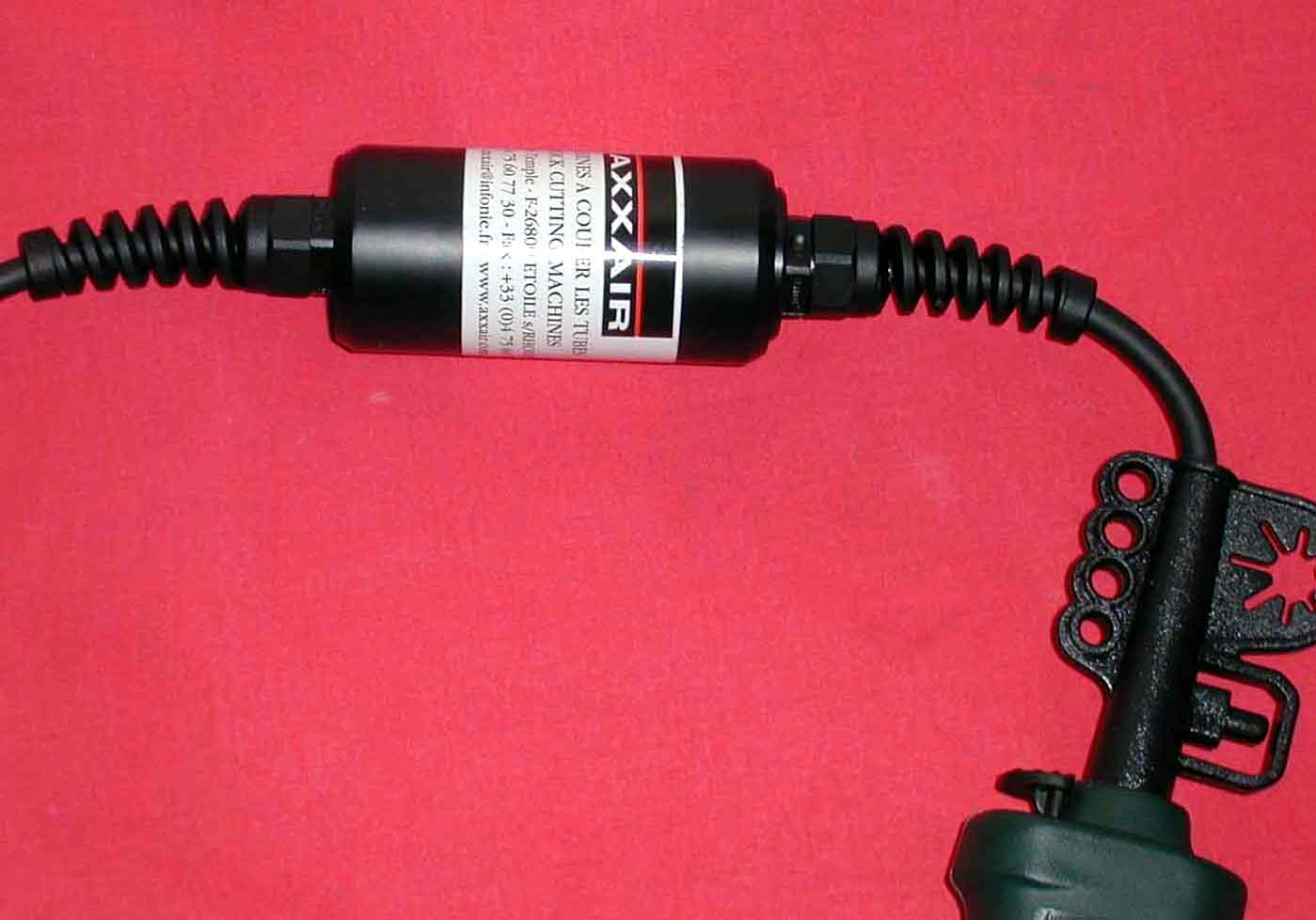

* Electric rotating joint

This element is new and improved. Take a look at this photo!

The new torque in this joint turns more easily in order to give you a more efficient motor. It is available on both the FLEX and the METABO versions of the motor.

Welding

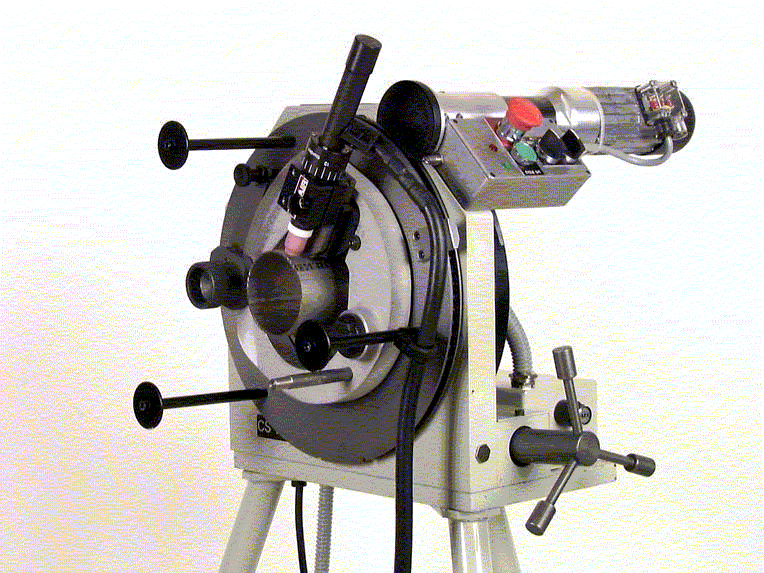

* New cutting and orbital welding machine : the CS120

The new CS120 is a cutting and welding machine all in one, based on the automatic tube cutting model CC120:

Cutting Capacity : 5 mm to 129 mm (1/6" to 5")

Welding capacity : 12 mm to 125 mm (1/2" to 5")

+ can weld from 1 to 3 mm in thickness

The whole process is guided by a control box that can be used at a distance. The CS120 is an unbeatable combination that allows you to win time, quality and money for all your prefab cuts and welds

(Available from the end of February)

Please do not hesitate to write us at axxair@infonie.fr



Thank you for visiting our site. Hope to see you again soon!
