Proximity access control components by Deister Electronics have gained worldwide recognition for superior performance in many applications.   Innovative design has made the products exceptionally compact and vandal resistant.  The readers provide the highest level of security and reliability, even in hostile environments.

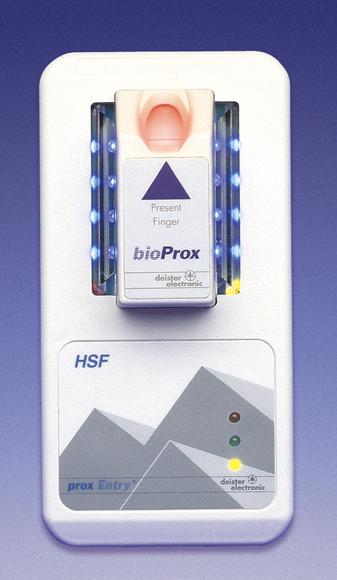

BPR10

Bioprox readers enable simple integration into any access control system supporting all known interfaces.  The stylish and compact BPR 10 combines fingerprint technology with proximity access control.  This unique approach puts to bed the myth that biometric systems are slow.  After presenting the proximity card, the fingerprint verification takes on average less than 0.5 seconds.


Fingerprint

The Biometric Proximity Reader For Ultimate Security

  • Fingerprint and proxEntry® HSF guarantee highest security for access control
  • Fast data evaluation in the BPR 10 is less than 0.5 seconds
  • Easy to integrate into existing systems
  • Compatible with most existing access control systems
  • Audible and visual feedback for easy and safe system operation
  • Easy handling leads to fast acceptance
  • Stylish and compact housing sets new standards for biometric identification
 BPR10

Technical Data

Dimensions: 211 x 108 x 26.5 mm (8.30" x 4.25" x 1.00")
Protection type: IP 40
Verification time: approx. 0.5s
Power Supply: 8...14 V/DC < 70mA
Operating Frequency: 125 kHz
Reading Distance: up to 12.5 cm (5") depending transponder type and surrounding environment
Interfaces: Wiegand, Data/Clock, Open collector, RS 232 / 485
