Proximity access control components by Deister Electronics have gained worldwide recognition for superior performance in many applications.   Innovative design has made the products exceptionally compact and vandal resistant.  The readers provide the highest level of security and reliability, even in hostile environments.

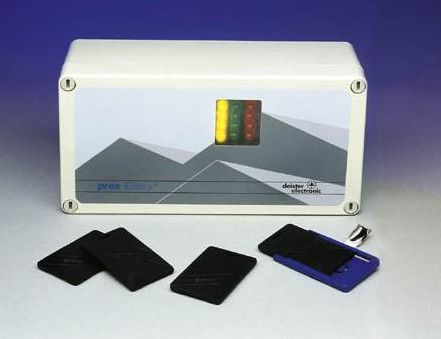

The Active PRX 50 Reader

The PRX 50 is a compact one box solution making it almost as simple as a PRX 5 to install.  A reading distance of up to 5 meters ( 15') enables safe vehicle indentification with the ability to do multiple reads. PRX 50

The active long range reader for fast identification

  • Easy to install because of a one box installation
  • Compatible to most of the existing access control systems
  • Audible and visual feedback for easy and safe system operation
  • High speed detection for a safe and secure identification
  • Rugged enclosure, the compact case makes the PRX 50 especially suitable for outdoor use

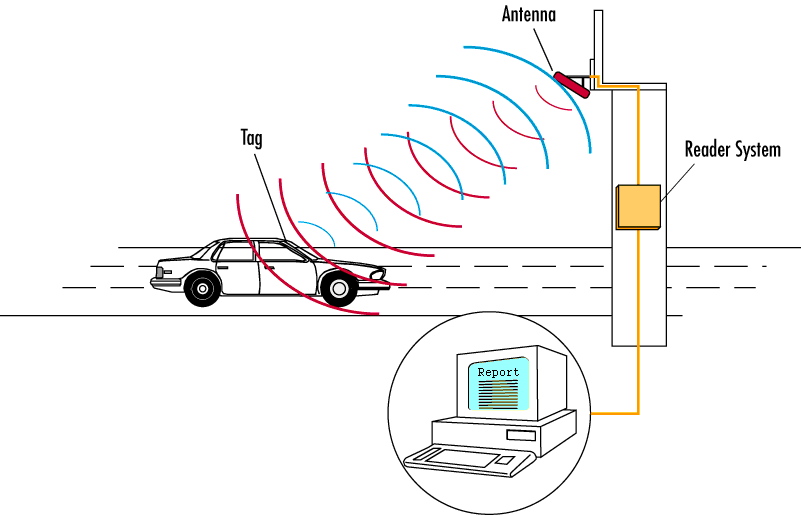

 Car ID
PRX50 Model Authorized personnel can effortlessly gain access while still maintaining a high security atmosphere.

Technical Data

Dimensions: 325 x 165 x 100 mm (12.8" x 6.5" x 4")
Protection type: IP 65
Operating Temperature: -20...+60 C °C (-4°... +140° F)
Power Supply: 12 V/DC < 400mA
Operating Frequency: 2.54 GHz
Reading Distance: up to 5 meters (15') depending on transponder type and surroundings
Interfaces: Wiegand, Data/Clock, Magnetic stripe (optional) , RS 232, RS 485
