Proximity Access Control Products

Proximity access control components by Deister Electronics have gained worldwide recognition for superior performance in many applications. Innovative design has made the products exceptionally compact and vandal resistant. The readers provide the highest level of security and reliability, even in hostile environments.

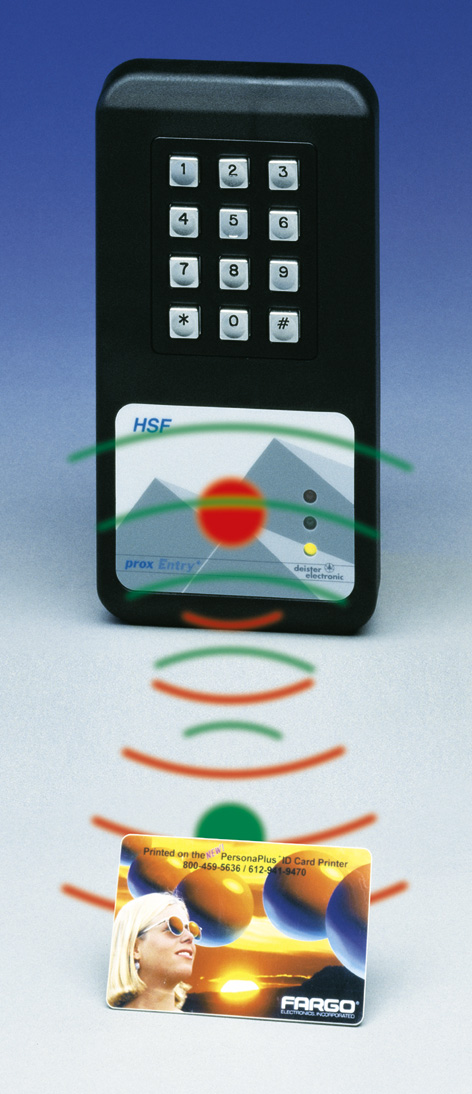

PRX 5 HSF Keyboard

The new high security reader utilizes a combination of HSF proximity and PIN codes to provide additional security for access control

The Double Security Reader

Double security because of the transponder and keypad information
Rugged design guarantees high functionality and a long lifetime
PAE-mode for copyproof data transmission on HSF readers and compatibility to all other proxEntry® readers
ADE-mode for total cryptological data transmission along with authentication
Audible and visual feedback for easy and safe system operation

Technical Data

Dimensions:	211 x 108 x 24.5 mm (8.30" x 4.25" x 1.00")
Protection type:	IP 65
Operating Temperature:	-25...+60 °C (-13°... +140° F)
Power Supply:	8...14 V/DC < 70mA
Operating Frequency:	125 kHz
Reading Distance:	up to 12.5 cm (5") depending on mounting and transponder type
Interfaces:	Wiegand, Data/Clock, Magnetic stripe emulation, RS 232 / 485
Data Formats:	up to 64 bit customer specific data formats
