• Stations with one, five, or ten charging channels.
• Self-monitoring: automatic switch-over to Trickle Rate mode prevents overcharging.
• Separate LED for each charging channel indicates status.
• Battery Packs can be left on charge for up to 30 days.
• No need to discharge the Battery Pack before using the stations.
• Racal Smart Chargers accept all Racal Battery Packs used with NIOSH approved systems.

Powerflow^® System Full Facemask
Air you can wear - almost anywhere!
Powerflow - Racal's outstanding powered air-purifying respirator has a motor/airflow unit and HEPA filter mounted directly at the front of the facemask.

• Lightweight, low profile, compact design. Worker accepted.
• Meets ANSIZ87.1-1989 (Eye/Face Protection). No need to wear safety glasses.
• NIOSH/MSHA approved with SP3 HEPA filter. Maximum particulate protection.
• Mask-mounted motor/airflow unit. Increased mobility in tight quarters.
• Water resistant HEPA filter. Prolongs filter life.
• Intrinsically safe rechargeable 8-hour battery pack. Approved for use in combustible atmospheres; full shift performance.

EDP-10 Free Air Pump
Air flow: 10 cfm at 5 psig. Supplies air to two workers wearing continuous-flow supplied-air half or full face mask respirators, or one worker wearing a continuous-flow supplied-air hood or helmet respirator.

Supplied-air respirators used with this pump must be MSHA/NIOSH approved to operate at 15 psig or less. Open drip-proof motor drive, for use in clean, dry areas.

Inlet filter: Medium efficiency, keeps particulates larger than 25 microns out of the air supply. Inlet filter can be extended up to 300 feet from the pump using V50EX remote extension hose kit. Weight: 49 lbs.

CC-20 Series Supplied-Air Respirator
Respiratory, overspray and splash protection for a variety of industrial applications.

Comp-4^TM
The first high pressure portable 4-man breathing air compressor that operates on standard 115 Volt/60 Hz/20 Amp electrical service! At an affordable price, the patented rotary vane design provides a smooth, even compressed air delivery at pressures up to 110 psi. The compact design measures 36"L x 16"W x 16.75"H and weighs a mere 120 pounds. System pressures are controlled with a built-in adjustable pressure switch. These pressures can be monitored by a built-in pressure gauge. The rugged steel frame features dual rear wheels and a built-in retractable handle make the COMP-4 the most versatile, 4-man high pressure, breathing air compressor ever offered. Constant Flow Respirators cannot be used with these systems.

Bac-20 4-Man Compressor

EAC-2300
Air Systems' innovative bottled air cart has been ergonomically designed to help prevent back injuries and facilitate mobility. The "Ergo-Air"^® Cart features one-hand operation during either raising or lowering a 500 pound load, made possible by a unique dual action gas assisted lift mechanism. The basic cart design comes standard with Air Systems' unique control panel, storage compartment, manual hose reel, cart, and cylinders. Standard hose reel holds 400 ft. of 3/8" or 300 ft. of 1/2" breathing air hose.

EAC-2300 "ERGO-AIR"^® cart with 2 each 300 cf cylinders, 2400 PSI - Order hose separately
EAC-2300NB Same as EAC-2300 - No cylinders

Breather Box

• First stage filter w/filter change indicator. Bulk water and particulate removal.
• Second stage filter w/filter indicator. Oil coalescing and ultra-fine particulate filtration.
• Third stage filter w/filter change indicator. Organic vapor and odor removal.
• Automatic drains in first and second stage.
• In-line carbon monoxide monitor.
• Dual 9-volt battery operation and/or 115 volt line power.
• Optional C0/02 monitor available. Order Model No. BB50-C002.

PAK-4R
Key standard features:

• CGA-347 operation at 4500 psi.
• Adjustable bottle straps with velcro.
• 3-way high pressure directional valve.
• External high pressure inlet-male 347.
• Low pressure regulator for pneumatic tools.
• 8" diameter ball bearing wheels.
• Adjustable output regulator.
• Telescoping steel handle
• Rear hose rack.
• HI-VIS reflective tape on cart.
• Removable bottled air tray.
• Dimensions: 33"H x 25"W x 17"D.
• Weight: 37 lbs., without cylinders.
• Steel cart.

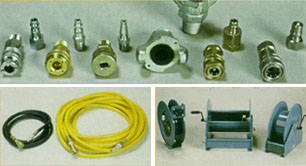

Breathing Air Accessories
Consult your Safeware Rep for assistance

Continuous Flow Respirators
These respirators provide a constant supply of fresh air when attached to a respirable Grade D air source or Ambient Air Breathing Apparatus (AABA). Choose half mask or full facepiece modesl, both available with or without an R73 HEPA egress filter.

• Half mask available in 3 sizes.
• Full facepiece available in silicone, with six strap harness or Tite-Seal ratchet headgear for a snug, comfortable fit.
• Full facepiece designed to direct air against lens to reduce fogging.
• HEPA filter models feature a check valve that automatically switches to air purifying mode when air supply is interrupted or the hose is disconnected.
• Inexpensive R73 HEPA filter can also be used with 6000 series belt-mounted PAPRs and with 6000 series negative pressure air purifying full facepiece respirators.

Airmaster

• High performance, dependable regulator design.
• Simple, field serviceable regulator.
• Patented replaceable regulator valve.
• Purge button (overrides valve).
• Belt mounted regulator.
• Wide operating range (60-100 psi).
• Large regulator diaphragm, quick response time.
• Includes parts for HEPA egress.
• 6000 Series facepiece, interchangeable with other types of respiratory protection.
• Heavy duty breathing tube.
• 5-minute escape SCBA.

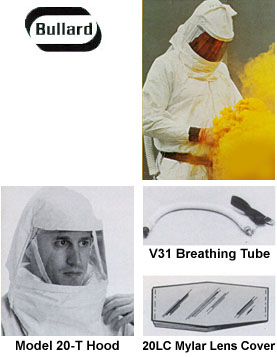

88 Series Supplied-Air Respirators
Bullard 88 Series respirators feature a tough, durable helmet and cape that cover the head, neck, face and torso. Each model also includes a breathing tube assembly that controls the flow of air into the respirator. 88 Series supplied-air respirators consist of three Bullard components; all must be present and properly assembled to constitute an MSHA/NIOSH-approved respirator.

1. Respirator helmet and cape.
2. Breathing tube assembly.
3. Breathing Air Supply Hose.

Bullard offers a wide range of configurations. Contact your Safeware Representative for assistance with this product.

Simplex^TM (SCBA)
The Willson Simplex^TM SCBA is the easiest-to-use, easiest-to-maintain self-contained breathing apparatus in the industry. Training is easy so it takes less time. And because there are few moving parts, maintenance is easy and there's less chance of equipment failure.

• First-stage pressure reducing and second-stage pressure demand regulators are mounted on the backpack for protection.
• Demand regulator is designed to fail in the open position, flooding the facepiece with air in the event of failure without any user activation.
• Patented breathing/sensing tubes - one senses pressure in the facepiece, the other provides air flow - provide quick responding air flow to a Simplex wearer.
• All units include durable carrying case.

Sigma^TM Self-Contained Breathing Apparatus
Survivair's Sigma Self-Contained Breathing Apparatus (SCBA) represents the ultimate in mask-mounted regulator design. Incorporating sleek, simplified components and innovative features, the Sigma provides an unmatched combination of comfort, convenience, performance, low-cost operation, and reliability.

All major components, such as the first and second stage regulators and gauge/alarm assembly, have minimal moving parts. This increases reliability by reducing opportunities for malfunction.

The Sigma is designed to be so reliable that it comes complete with an unprecedented 6-year warranty.

Self-Contained Breathing Apparatus
Suitable for use where site conditions require Level A or Level B protection. The 800 Series positive-pressure SCBA is certified to NIOSH/ MSHA/NFPA and available in 30 minute and 60 minute rated models to protect your workers from smoke, gaseous vapors, toxic fumes, and in hazardous confined space entries or oxygen-deficient atmospheres.

Simple to use, simple to maintain, and simple to repair. The first stage reducer/regulator has only three moving parts and is backed by a five year warranty.

Emergency Escape Breathing Apparatus
Suitable for use where site conditions require only Level C or Level D protection. The Model 845 is a five-minute, emergency escape self-contained breathing apparatus. Made of durable polyurethane, the transparent hood provides superior visibility. To minimize fogging, a deflector blows incoming air into the viewing area. After use, the hood can be detached for replacement or cleaning.

The Model 850 also shares the protective features of the Model 845, but has a longer duration, ten-minute air supply. Both models are equipped with a versatile harness assembly that allows the apparatus to be worn around the neck, waist or over the shoulder.

SCBAG
The SCBAG SCBA is a totally unique concept in respiratory protection. The SCBAG unit and its integral carrying case/storage bag are quickly transformed into an SCBA with a vest-type harness assembly. The SCBAG is NIOSH/MSHA approved for a variety of applications that will satisfy virtually all users' needs. The facemask is stored in its own protective pouch, conveniently located on the fron of the vest for quick and easy donning. SCBAG's vest harness/storage bay is available in PBI^®/Kevlar^® or Cordura^® Nylon base material.

Respirator Storage Bags
Reusable storage bags keep equipment contaminant free. Large (12" x 15") transparent bag with zipper for positive closure. Bags are made of tough 10 mil. poly to last longer and hold half- or full-mask sizes. Cleaning instructions are printed on bag.

Ter 'n Wipe Disposable Sanitizing Towelettes
A convenient way to keep personal protection equipment clean and deodorized, as well as prevent cross-infection. Individually packaged 5" x 8" towelettes, pre-moistened with Magic's disinfectant that kills HIV 1, TB and Herpes Simplex bacteria. It cleans respirators, and hard hat liners, and removes perspiration and body oils on contact. Comes assembled, with 100 foil wrapped towelettes, ready to use with built-in eye hook flap for easy wall hanging.

SCBA Cabinet

• A patented seal.
• Positive seal trim lock bulb gasket.
• Comes complete with universal SCBA brackets.
• One size fits all major brands of SCBA.
• Epoxy-coated brackets hold cylinders securely without damaging cylinder walls.
• Solid brass grab handles.
• Easy view acrylic window provides verification of contents.
• Full length stainless steel hinges, rivets and dual quick opening latches.
• Custom self adhesive classification emblems.
• Choice of UV-inhibited high visibility colors.
• Mounts easily on any flat surface.

FT-10 Qualitative Fit Test Apparatus

• Laminated instruction booklet (English/ Spanish/Portuguese/French).
• One hood.
• One collar assembly.
• Nebulizer #1 (sensitivity).
• Nebulizer #2 (fit test).
• Fit test solution.
• Sensitivity solution.
• Two sets replacement nebulizer inserts.

FT-20 Training and Fit Testing Case
This complete package combines the 3M training and fit testing materials needed to help satisfy OSHA requirements for a respiratory protection program.

• Durable, molded black hinge straps and wide top pocket for extra literature. It is easy to carry and convenient to use.
• All FT-10 materials.
• 3M universal fitting instruction video.
• 3M animated guide to respiratory protection video.
• All 3M respirator fitting posters.
• Administrative respiratory protection guide.

Sensidyne Fit Test Kit
This kit is useful for respirator fit-testing air-purifying respirators. Uses an irritant smoke to determine correct fit. Must use HEPA filters on respirators. Each kit includes: 6 smoke tubes, an aspirator bulb, tube breaker, and a carrying case.
