Three Steps For Compliance

Step 1: Written Program

Step 2: Training Employees

Step 3: Implement Program

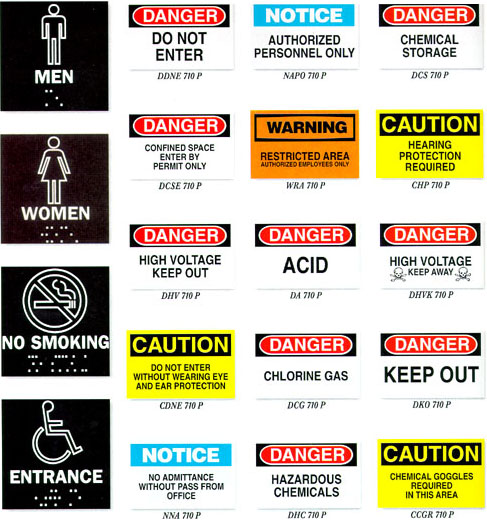

ADA Signs
8" x 8" Rigid plastic.

Price each	1-9	10+
70102 Men's Restroom	25.61	24.15
70101 Women's Restroom	25.61	24.15
70108 No Smoking	25.61	24.15
70161 Entrance	25.61	24.15

Contact your Safeware Representative for your copy of our full sign catalog.

Signs
All signs in this section are 7" x 10" and made out of plastic.

Price each	1-9	10+
Order by Catalog Number	5.35	5.08

Pipe Marking Guide This guide is designed to describe some of the regulations and guidelines of ANSI Standard A13.1-1981. While not comprehensive, this guideline should help in determining pipeline identification requirements. ANSI Standard A13.1-1981 The ANSI Standard for pipe identification is a widely used guideline in determining pipe identification requirements. The purpose of the standard is to "assist in identification of hazardous materials conveyed in piping systems and their hazards when released in the environment." "Pipes are defined as conduits for the transport of gases, liquids, semi-liquids, or fine particulate dust." The standard covers several main points on identification including: Legend The Legend (or wording) is the primary way that the contents of the pipe are communicated. The standard recommends that the wording be brief, informative, and simple but also have sufficient details necessary to identify the hazard. Arrows are used to indicate direction of flow. Arrows are a part of all mechanically applied markers _ no separate arrows are required. Color The color of the pipe marker is used to identify the hazard level of the pipe contents. Size of Letters Letter size is suggested below and is based on the outside diameter of the pipe or covering. The length of the color field is also recommended to give maximum visibility to the marker. The color field include legend plus arrow. Visibility The standard recommends the markers be placed in visible locations on the pipe based on the normal line of sight. Also, it specifically recommends applying markers: Close to valves or flanges. Adjacent to changes in direction, branches and where pipes pass through walls and floors. At intervals on straight pipe runs sufficient for identification. Please contact your Safeware Representative For Assistance with Your Pipe Marking Needs

Labelizer Plus Industrial Labeling System
The Labelizer^® PLUS Industrial Labeling System creates custom labels in minutes. Thermal transfer print process produces durable labels for indoor and outdoor applications.

The Labelizer PLUS produces pipe markers, equipment labels, bar-code labels, warning labels and much more. The system is easy to use. Just type in the message or information and press print. The label is created in seconds. We offer a large variety of tapes in a wide range of colors.

Price each	1 unit
BRA 64801 Labelizer PLUS system	3,495.00
BRA 64677 Pipe Marker Software with PLUS	4,295.00
BRA 64682 Pipe Marker Software w/o PLUS	995.00
BRA 64678 Right-To-Know Software with PLUS	4,595.00
BRA 64683 Right-To-Know Software w/o PLUS	1,295.00

Labelite Portable Labeling System
The LabeLite Portable Labeling System creates custom labels in minutes. Thermal transfer print process produces durable labels for indoor and outdoor applications. The LabeLite produces pipe markers, equipment labels, bar-code labels, warning labels and much more. The system is easy to use. Just type in the message or information and press print. The label is created in seconds.

Price each	1 unit
BRA 40000 LabeLite System	2,795.00

Labelizer^® Plus Tapes
Adheres to pipes, walls, equipment, windows... most clean, dry surfaces. Even conforms well to irregular, curved or rough surfaces. Good for general-purpose industrial uses - it even stands up to grease, oil, and mild chemicals. Five-year average outdoor durability in temperatures from 180°F to -40°F. Tape can be applied as low as 0°F. Your best selection of label color and type color options... including those that meet ANSI standards. 90 feet per cartridge.

Labelite^TM Tapes
Adheres to pipes, walls, equipment, windows... most clean, dry surfaces. Even conforms well to irregular, curved or rough surfaces. Good for general-purpose industrial uses _ it even stands up to grease, oil, and mild chemicals. Five-year average outdoor durability in temperatures from 180°F to -40°F. Tape can be applied as low as 0°F. Your best selection of label color and type color options... including those that meet ANSI standards. 90 feet per cartridge.

Some Helpful Hints for Using
Labelizer PLUS^® or LabeLite^TM Labeling Systems...
Pipe Markers · Bins · Shelves · Storage Right-To-Know Compliance · Lockout/Tagout Tools Hazards · Storage Areas · Supply Areas Equipment ID Handicap Access · Operating Instructions · Emergency Exits · Power Sources · Chemical Compatibility · On/Off Switches · Restricted Areas · Fleet Vehicles · First-Aid Stations · Heating & Air Cooling Units · Parking Areas · Vehicle Access · Emergency Phone Numbers · Exits & Entrances · Recycleables · Drums & Containers · Waste Disposal · Flammables · Electrical Outlets · Weight Limits · Training Materials ·AND MORE!!!

OSHA Facilities Marking Manual
Using this valuable resource is the single best way to avoid costly OSHA hassles. You'll get the big picture on OSHA requirements for signing, labeling and marking... complete with colorful illustrations and timely information.

• Helps your company avoid OSHA fines... by complying with signing, labeling and marking requirements affecting your facility.
• Saves time with easy-to-understand illustrations and information.
• Helps your company comply with OSHA "performance standards" that tell you what to do, but don't tell you how to do it.
• Strengthens employees' positive feelings about their jobs... by visibly demonstrating your company's commitment to safety.

Contents includes: How to Use This Manual, multiple Workplace Situations sections, OSHA Consulting and OSHA Inspection sections, as well as Regulations, References, Local-Area OSHA Offices list, and a listing of Trade Associations.

Price each	1 unit
BRA 43992 Marking Manual	133.76

Lockout Compliance Manual Vol. 1 & 2
Hazardous Energy Control Manual (Volume 1)
85-page manual includes:

• Step-by-step instructions for developing your Lockout/Tagout compliance program.
• Suggested training program including outlines, training notes and handout materials.
• Forms and checklists for developing your hazardous energy control procedures.
• Sample programs and procedures.
• Copy of OSHA Standard 29 CFR 1910.147.
• Saves time with easy-to-understand illustrations and information.

Hazardous Energy Control Procedures (Volume 2)
Includes:

• Sample programs and forms for completing your inventory listing, equipment procedures, and employee training log.
• Three-ring binder designed to contain your written program and related information.

Item	Price
BRA 65556 Lockout Manual	121.24
BRA 65557 Lockout Procedures	35.66
BRA 65558 Manual and procedures	131.66

Gate Valve Lockout Device
Make locking out valves safe and easy with the newGate Valve Lockout. Available in four sizes to fit valve handles from 1" to 13" in diameter. Made of durable non-adherent plastic to resist chemicals and hot and cold temperatures. Other colors available.

Price each	1-24	25+
BRA 65560 1"-21/2" Diameter	12.06	11.10
BRA 65561 21/2"-5" Diameter	20.17	18.56
BRA 65562 5"-61/2" Diameter	24.22	22.28
BRA 65563 61/2"-10" Diameter	30.33	27.90
BRA 65564 10"-13" Diameter	58.72	54.02

Color-Coded Security Padlocks

• 1.5" anodized aluminum padlock (also available in 1.75" and 2").
• Six colors for team identification (red, blue, green, gold, duranodic, black).
• Hardened steel shackles and coverplate.
• Special shaped pins to counter picking.
• Available keyed alike, master keyed, and grand master keyed.
• American Lock's famous double-ball locking system.
• Also available with key retaining feature.
• Available in 3 shackle lengths.
• Specify color.

Price each	1-23	24-71	72+
AML 1105 Color-coded padlocks	9.39	7.82	6.69

Universal Ball Valve Lockout Device
The Universal Ball Valve Lockout Device is designed to "Lockout" quarter-turn valves of varying sizes and semetric handle dimensions (round, square, flat). These lockout devices will accommodate valves up to 11/4" thick and 15/8" wide, and various lengths.

Price each	1-24	25+
BRA 65400 3/4"T x 1"W	42.15	38.78
BRA 65401 11/4"T x 15/8"W	48.48	44.60
BRA 65402 3/4"T x 1"W	17.35	15.96
BRA 65403 11/4"T x 15/8"W	19.15	17.62

"No-Hole" Circuit Breaker Lockout
"No-Hole" Circuit Breaker Lockout device will lock out all single-pole circuit breakers (except Square D QO style breakers). Enhanced to lock out most all Federal Pacific breakers. Easy to install, provides secure locking protection. Accepts up to 9/32" shackle diameter lock. Fits wider and thicker switch tongues: 277-.65" wide by .46" thick.

Item	Price
BRA 65965 277-volt CB/pk. of 6	36.79
BRA 65966 480/600-volt CB/pk. of 6	41.24

Universal Multi-Pole Breaker Lockout
On Multi-Pole Lockout which works with most major multi-pole breakers with tie-bar. Very convenient because no self-locking tie is needed. Locks out all breakers which Brady's current multi-pole devices (65694, 65698, 65689) lockout. Including GE, ITE, Sylvania, Challenger, Bryant, Westinghouse, and General Switch Co.

Item	Price
BRA 66320 Univ. Multi-Pole Break/pk. of 6	36.79

Lockout Stations

Ten Lock Station
Station includes: 10 blue bumper padlocks, 25 "Do Not Operate" tags, and 3-1" Safety Lockouts. Size 19" x 12".

Personal Lockout Station
Station includes: 4 blue bumper padlocks, 25 "Do Not Operate" tags. Size 8" x 12".

Four Lock Station
Station includes: 4 blue bumper padlocks, 25 "Do Not Operate" tags, and 3-1" Safety Lockouts. Size 8" x 12".

Item	Price
BRA 65679 Ten lock station w/o hardware	109.50
BRA 65680 Ten lock station complete	233.65
BRA 65550 Personal station w/o hardware	47.99
BRA 65553 Personal station complete	109.50
BRA 65763 Four lock station w/o hardware	51.49
BRA 65764 Four lock station complete	135.87

Circuit Testers
Hubbell's GFI tester is designed to measure the trip level of a portable or wired-in GFI in a range of 2-7 mA. Determines leakage in 120V tools. The 5266PT Receptacle Polarity-Circuit Tester has a simple visual set of neon indicating lights to quickly identify various fault conditions in electrical circuits. Using the Polarity-Circuit Tester is fast and simple. Just plug into a single-phase 110-volt 2-pole 3-wire receptacle; the arrangement of lighted and/or unlighted indicating lamps will immediately show circuit condition.

Price each	1-9	10+
GFT-2G Ground-Fault Tester	73.50	63.45
5266PT Polarity Tester	12.50	10.79

Lockout Sign
Enhance the visibility of your Lockout Station with this V-shaped acrylic sign.

Item	Price
BRA 66328	21.05

Lockout Hasps

• Protection for electric, gas, water, steam, acid, and pneumatic control units and levers.
• Round design of hasp prevents engagement of circuit breaker boxes and disconnect switches.
• Red poly resin coating for greater visibility.
• Meets ANSI standards for safety.
• Will accept up to six padlocks of 3/8" maximum shackle diameter.

Price each	1-9	10+
OG80 Lockout Hasp, 1"	5.12	4.46
OG80-2 Lockout Hasp, 1.5"	5.39	4.70

Plugout^®
Two sizes to fit most heavy industrial plug applications. Small version accepts plugs with maximum 2.75" diameter and 4.75" length with 1" cord. Large version accepts plugs with maximum 4.5" diameter and 10.5" length and 1.45" cord.

Price each	1-9	10+
HLD 23/4" diameter	13.50	11.65
HLD2 41/2" diameter	21.50	18.56

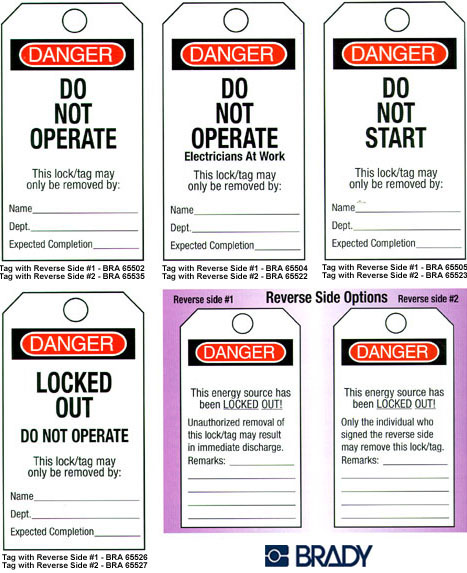

Lockout Tags

			Price Per Package of 25 Tags
Description	Size	Grommet	1-9 Packages	10-24 Packages
Heavy Duty Polyester Tags	5-1/2" x 3	7/16" Brass	40.62	32.09
