Confined Space Entry Ventilation Technique
The Saddle Vent® revolutionizes confined space operation by offering a level of safety and productivity that has never been available before.Invented by a professional tank cleaner for easy access for his workers to enter and exit a confined space, the Saddle Vent® takes up only 3 inches in a manhole and its unique design does not reduce air flow. Its design allows fresh air to be supplied to the workers and displace any harmful gases that may be deadly for the occupants. The use of the 90° elbow removes the severe kink in the air duct and allows for rotation of the intake duct to any desired position at the street level. An eight inch air hose is attached to both ends of The Saddle Vent® and placed in the entry access hole, thus eliminating the need to remove the hose each time entry or egress is required. In fact, the entire system can be set up in less than five minutes.
Economy Blower Package
Product Price
AIR SVB-E8CUP Economy blower package 995.00 (A) AIR SVB-E8EC Economy blower, GFI power cord, 1/2 HP-thermal protection 575.00 (B) AIR SVH-6 Vent duct 6' vinyl poleyster hose, 8" diameter, internal steel reinforced 80.00
AIR SVH-15 Vent duct 15', same as AIR SVH-6 140.00 (C) AIR SV-189 Saddle vent, allows unrestricted entry and egress 195.00 (D) AIR SV-UM Universal mount mounting bracket 45.00 (E) AIR SVH-DC25 Duct carrier holds up to 50' of ducting 95.00 (F) AIR SV-90 90 degree elbow prevents ducting from bending 45.00
Rescue Kit 1
CON-SPACE Rescue Kits are configured to provide Rescue Teams with the ability to meet the operational requirements of most Confined Space Rescue deployments. All Rescue Kits can be customized to meet specific team requirements.- 1 Safety Attendant
- 2 Rescuers
- 2 Back-up Rescuers
Product Rescue Kit 1 5,780.00
Rescue Kit 3
All Rescue Kits come with the Talk Box as a standard accessory. This valuable two-way device can be used for patient contact in numerous rescue situations such as, Confined Space, Structural Collapse and even in some High Angle Rescue Operations.- 1 Safety Attendant
- 1 Rescuer
- 1 Back-up Rescuer
Product Rescue Kit 3 3,430.00
Two Speed Electric Blower with GFI
- 2 speed electric motor TEFC - 3/4 HP.
- 115/230 VAC continuous duty.
- Termal overload protected.
- Installed GFI power cord.
Product Price AIR SVB-2GF 895.00
Gasoline Powered Blower
- Custom gas-tight muffler to prevent aspiration of CO exhaust gases.
- 3.5 HP B&S motor.
- Aluminum non-sparking blower wheel.
Product Price AIR SVB-G8 750.00
Explosion-Proof Electric Blower
- UL approved explosion-proof electric motor.
- Factory installed on/off switch.
- Factory wired with 25ft. cord - no plug provided.
Product Price AIR SVB-E8EXP 1,495.00

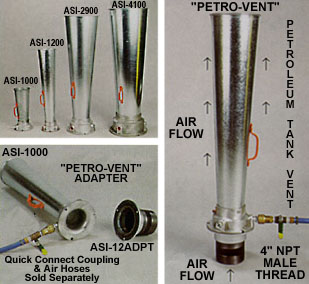

Venturi-Style Pneumatic Air Blowers
Ideal for Exhausting Hazardous Vapors
From Below Ground LocationsFeatured Specifications
- Used to ventilate explosvie and hazardous vapors or fumes safely.
- No moving parts.
- Lightweight cast aluminum base.
- Static grounding lug is standard.
- Operates on compressed air or steam.
- Galvanized steel horn - replaceable.
- Operating pressures up to 140 psi.
- Larger models available up to 8000 cfm capacity.
Product Price AIR ASI-1000 285.00 AIR ASI-1200 315.00 AIR ASI-2900 425.00 AIR ASI-4100 595.00 AIR ASI-12ADPT Adaptor for ASI-1000/1200 95.00 AIR ASI-29ADPT Adaptor for 2900 110.00 Venturi Blower Specifications
Inlet Pressure
40 PSGI 80 PSGI Model # Total Air Flow Total Air Flow ASI-1000 815 CFM 1182 CFM ASI-1200 1017 CFM 1462 CFM ASI-2900 2385 CFM 3347 CFM ASI 4100 3152 CFM 4929 CFM Model # Air Consumed Air Consumed ASI-1000 36 SCFM 62 SCFM ASI 1200 36 SCFM 62 SCFM ASI-2900 73 SCFM 124 SCFM ASI-4100 114 SCFM 193 SCFM
