CURRENT TRANSDUCER
CURRENT TRANSDUCER
GENERAL The SWARTZ® Current Transducer is a high performance, solid-state unit specifically developed to meet requirements for the supervisory control and date acquisition (SCADA) systems. The transducer is ruggedly constructed for the transit substation environment and operates form DC “housekeeping” battery supplies without the use of separate inverters.
DESCRIPTION The Current transducer is constructed on a flanged base and may be mounted in any orientation. Electrical connection is via screw terminal barrier strips. “Gain” and “Zero” adjustment ptimpots are located on the top cover for calibration for setting intentional offsets. The input is =/-mV; full range. The output is a bi-polar current source that tracks the input signal with current feedback located in the positive output for best performance.

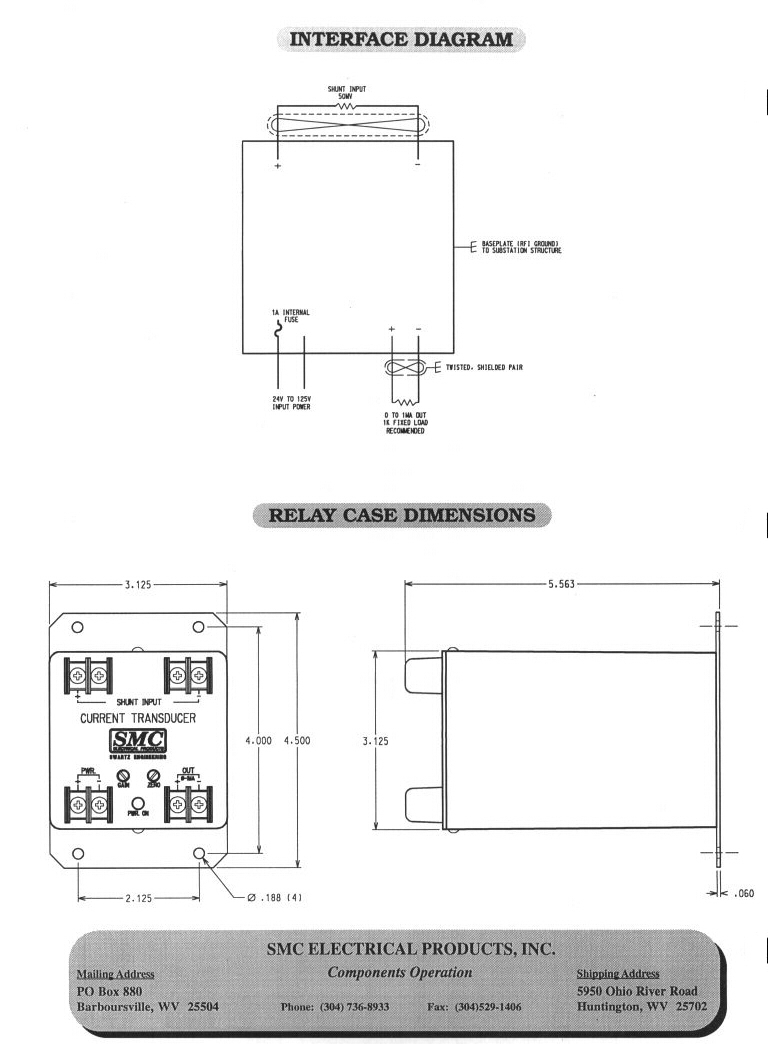

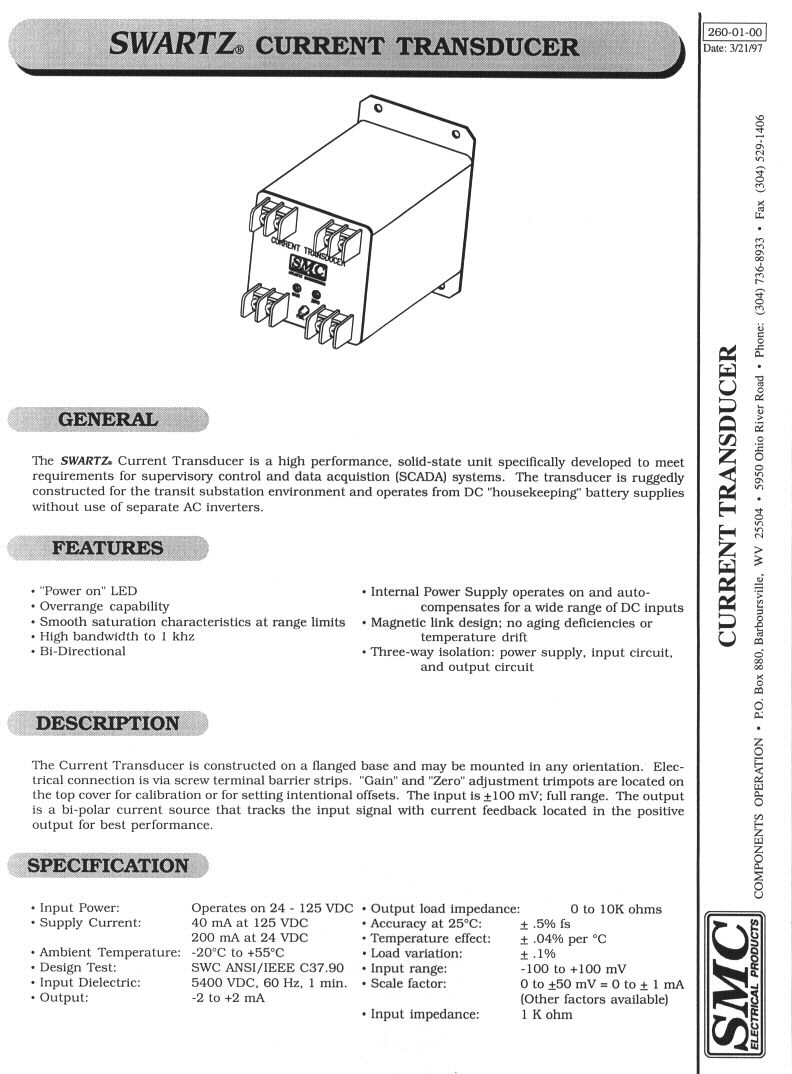

Click on spec sheet to view or print:
-
