SMC DC VOLTAGE TRANSDUCER
GENERAL The voltage Transducer is a high performance, solid state unit specifically developed to meet requirements for supervisory control and data acquisition (SCACA) systems. The transducer is ruggedly constructed and operates from DC “housekeeping” battery supplies without use of separate AC inverters
DESCRIPTION The Voltage Transducer is constructed to allow for “DIN” rail or flange mounting and may be mounted in any orientation. Electrical connection is via screw terminal barrier strips. “Gain” and “Zero” adjustment trimpots are located on the front cover for calibration or for setting intentional offsets. the input is +1KV; full range. The output is a bi-polar current source that tracks the input signal with current feedback located in the positive output for best performance. The Voltage Transducer will sustain a 4000 VDC input for one minute.
DC VOLTAGE TRANSFER
GENERAL The Voltage Transducer is a high performance, solid-state unite specifically developed to meet requirements for supervisory control and date acquisition (SCADA) systems. The transducer is ruggedly constructed and operates from DC “housekeeping” battery supplies without use of a separate SC inverters.
DESCRIPTION The Voltage Transducer is constructed to allow for “DIN” rail or flange mounting and may be mounted in any orientation. Electrical connection is via screw terminal barrier strips. “Gain” and “Zero” adjustment trimpots are located on the front cover for calibration or for setting intentional offsets. The input is +1KV, full range; The output is a bi-polar current source that tracks the input signal with current feedback located in the positive output for best performance. The Voltage Transducer will sustain a 4000 VDC input for one minute.

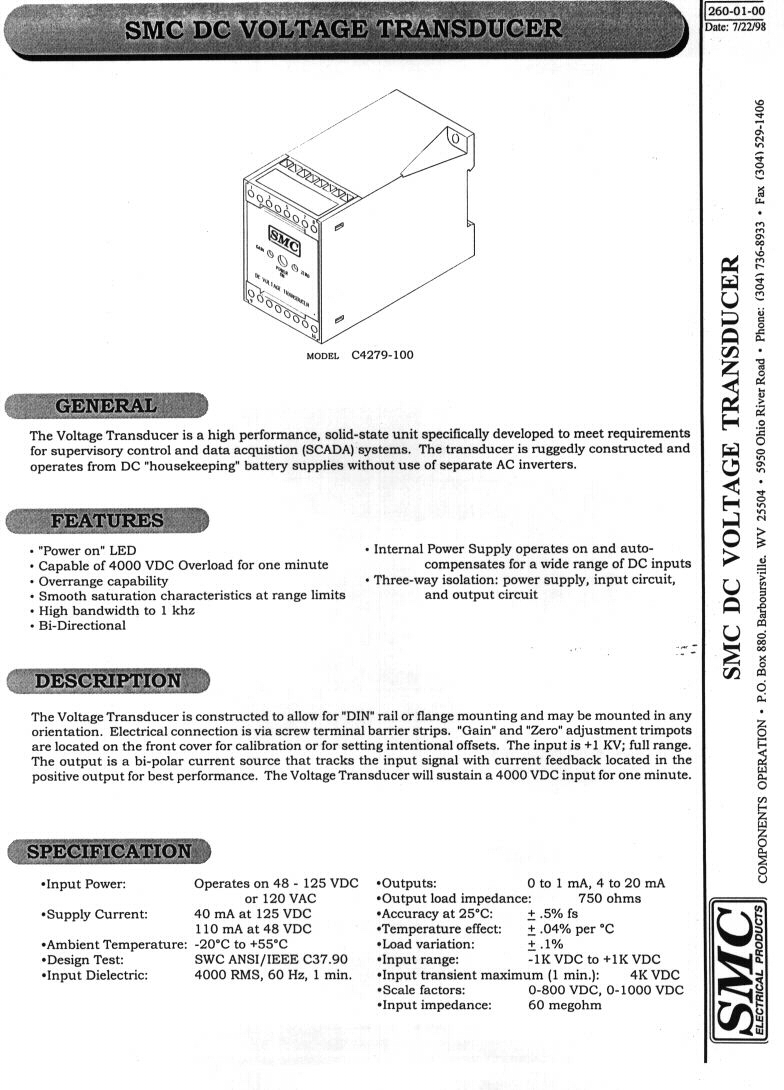

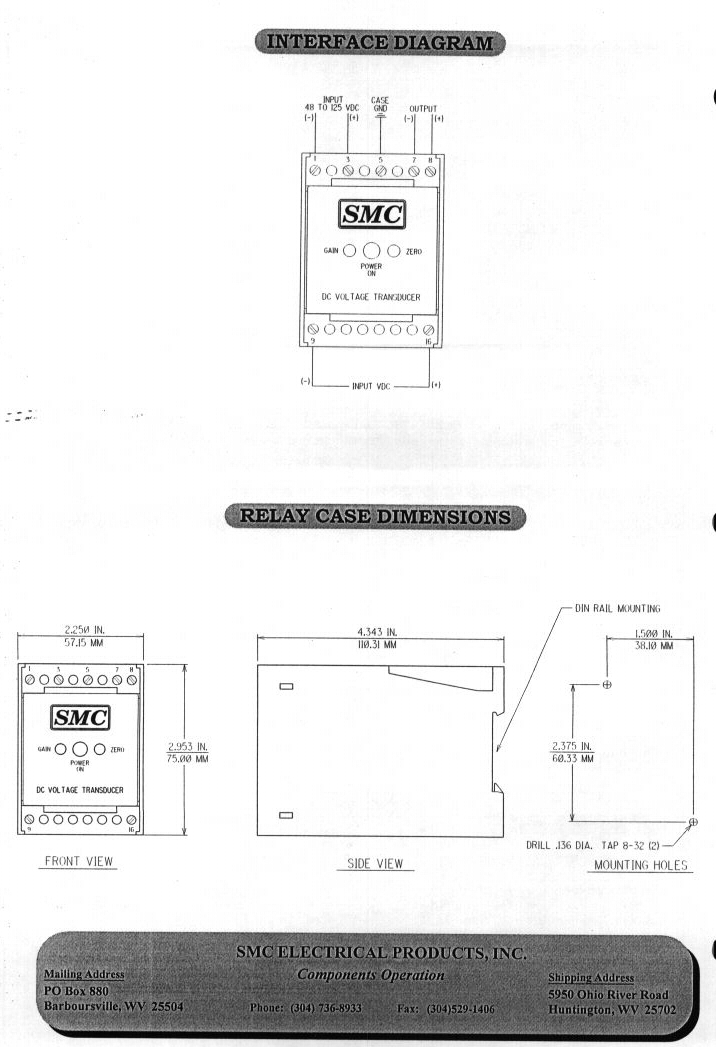

Click on spec sheet to view or print:
-
