PRODUCTS

All ITOI products are manufactured to quality standards from materials that assure consistent performance and extended lifetime. Our guarantee is that you will be 100% satisfied with every aspect of every product and that our products will provide complete protection for your valuable Integrated Circuit components.

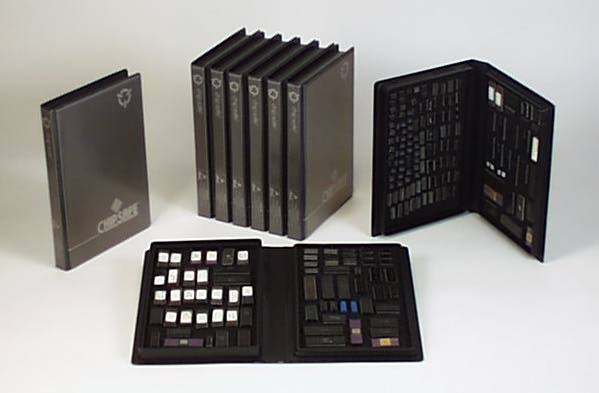

ChipSafe^TM

The ChipSafe has the largest IC storage capacity of our patented album storage container products. A snap-lock clamshell design mates between reinforced, welded seams and crush-resistant covers. Open trays lined with our conductive foam provide ideal bookshelf storage.

Product Name: ChipSafe
Model: 150
Overall Size: 6" x 9" x 1 1/4"
Storage Area: 2 ea of 5 5/8" x 8 3/4" = 102 sq in
IC Cacacity: 56/40 pin, 76/28 pin, 264/16 pin, 528/8 pin
Feature: Maximum IC storage

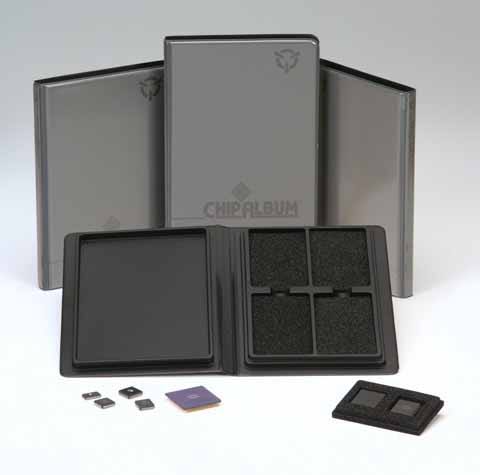

ChipAlbum^TM

The ChipAlbum is the same size as the ChipSafe, is half the thickness and stores ICs in four compartments on the inside rear panel. It is exceptionally rugged with extra crush-resistence. The compartments are sized to hold any of our Universal SMT Inserts to make the ChipAlbum an ideal bookshelf storage for handling ICs of any form including surface mount devices.

Product Name: ChipAlbum
Model: 400
Overall Size: 6" x 9" x 3/4"
Storage Area: 4 ea of 2 1/2" x 4" = 40 sq in
IC Cacacity: 20/40 pin, 28/28 pin, 104/16 pin, 220/8 pin; up to 4 SMT Inserts
Feature: Versatile storage of all IC forms including SMT

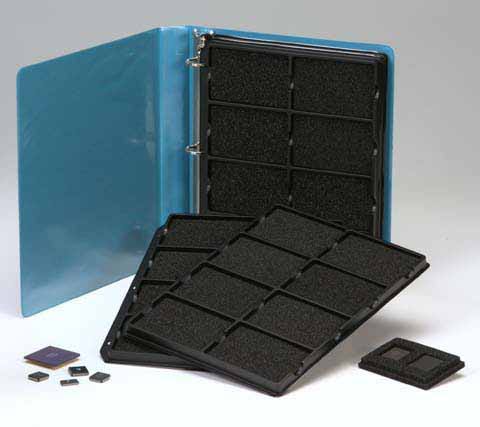

ChipPage^TM

The ChipPage is a 3-ring binder insert for storing any type of IC device including SMTs. Each of eight compartments will hold any form of DIP or SMT IC, visible through snap-in covers. A clear, open sleeve on the rear side allows for documentation and record keeping. Five ChipPages will fit into a 3" three ring binder, an ideal archival product to hold thousands of ICs safely in one location.

Product Name: ChipPage
Model: 800
Overall Size: 8 1/2" x 11" x 1/2"
Storage Area: 8 ea of 2 1/2" x 4" = 80 sq in
IC Cacacity: 40/40 pin, 56/28 pin, 208/16 pin, 440/8 pin; up to 8 SMT Inserts
Feature: Universal storage with annotation for all IC forms including SMTs.

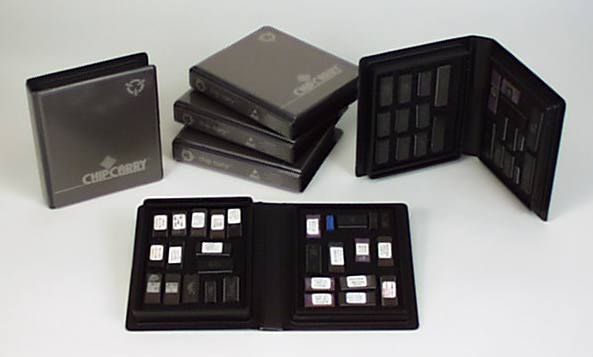

ChipCarry^TM

The ChipCarry is a compact version of the ChipSafe with all the protective features and benefits of its larger family member. The conductive foam lined open compartments offer versatile storage for small libraries and chipsets.

Product Name: ChipCarry
Model: 350
Overall Size: 5" x 6" x 1 2/4"
Storage Area: 2 ea of 4 1/8" x 5 1/4" = 43 sq in
IC Cacacity: 24/40 pin, 38/28 pin, 140/16 pin, 240/8 pin
Feature: Versatile IC chipset storage

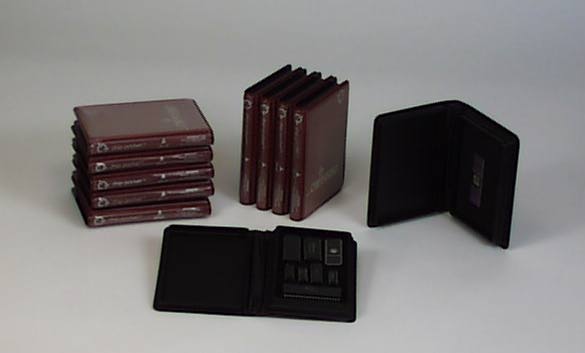

ChipPocket^TM

The ChipPocket is designed for convenient "everyday" handling of all IC forms. Its single compartment holds any of our inserts to provide crush-resistant, shirt-pocket transport protection for Masters, Mods, Revs and samples including SMTs. Customized for your IC sampling needs, it will make a lasting impression with your customers .

Product Name: ChipPocket
Model: 450
Overall Size: 3 1/2" x 4 3/4" x 1/2"
Storage Area: 2 1/2" x 4" = 10 sq in
IC Cacacity: 5/40 pin, 7/28 pin, 26/16 pin, 55/8 pin; or, 1 SMT Insert
Feature: Pocket size storage, handling, sampling of all ICs including SMTs.

ChipTray^TM

The ChipTray is designed to be a cost effective sampling, storing or archiving package for any handling or merchandising need. Any type of IC including SMTs can be safely contained and be visible through a water clear, snap-on cover. An open, back side sleeve allows for any insert of your choice or, alternately, a pressure sensitive backing for kitting or combining the tray with other packaging.

Product Name: ChipTray
Model: 100
Overall Size: 3 1/2" x 4 3/4" x 1/2"
Storage Area: 2 1/2" x 4" = 10 sq in
IC Cacacity: 5/40 pin, 7/28 pin, 26/16 pin, 55/8 pin; or, 1 SMT Insert
Feature: All purpose handling/sampling/presentation package; open rear sleeve or adhesive back

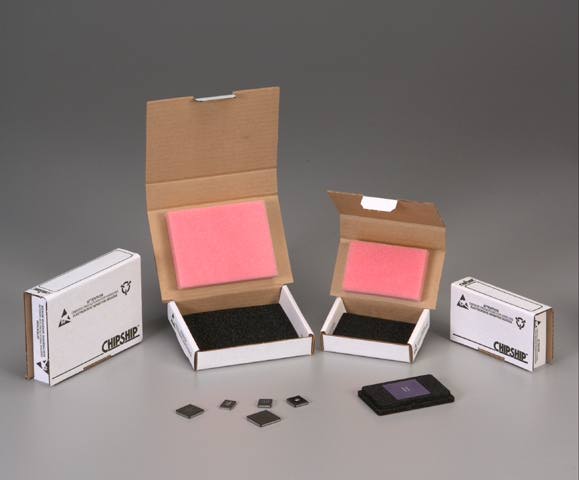

ChipShip^TM

The ChipShip is rugged, cost effective direct mail package for quickly and easily mailing or shipping one, a few or a bunch of ICs. Inside a double folded, 200# B-Flute corrugated outer wrap, the conductive foam insert and antistatic foam liners protected against any damage. Two sizes are available.

Product Name: ChipShip
Model: 800, 900
Overall Size: 3" x 5 1/2" x 1 1/2; 4 1/2" x 6 1/2" x 1 1/2"
Storage Area: 2 1/2" x 4" = 10 sq in; 4 1/8" x 5 1/4" = 43 sq in
IC Cacacity: 5/40 pin, 7/28 pin, 26/16 pin, 55/8 pin; 12/40 pin, 19/28 pin, 70/16 pin, 120/8 pin
Feature: Ready to go package replaces tubes, bubble pack, bags & odd boxes
